Magdos LB
Simple dosing pump in newest generation
  • Capacity range 0.36 - 15 L/hr
  • Suitable for toxic and aggressive media
  • Usable at ambient temperatures of up to 45 °C
  • Double-ball valves ensure an accurate dosing
  • Dosing capacity continuously adjustable from 0 to 100%
  • Long-range power supply unit
  • Mounting on wall or floor without bracket
  • Calibration functionality


Magdos LT
Reliable dosing of chemicals
  • Capacity range 0.14 - 17 L/hr
  • Suitable for toxic and aggressive media
  • Usable at ambient temperatures of up to 45 °C
  • Stroke length adjustable 0...100%
  • Internal operation with 25, 50 and 100% or control by pulse
  • Connection for level control
  • Double-ball valves for highest accuracy
  • Energy adjustment
  • Convenient single-button operation



Magdos DE-DX
Reliable dosing of chemicals
  • Capacity range 0.1 - 115 L/hr
  • Suitable for toxic and aggressive media
  • Usable at ambient temperatures of up to 40 °C
  • Stroke length adjustable 0...100%
  • Stroke frequency adjustable
    DE/DX 01...12: 0...100 /min.
    DE/DX 20...100: 0...70 /min.
  • Switchable to external control (e.g. water meter)
    DE/DX 01...12: up to 100 pulse/min.
    DE/DX 20...100: up to 70 pulse/min.
  • DX only: Pulse multiplication/division 1,2,4,8,16,32,64, switchable to external control with 0/4...20 mA input
  • Pulse and level control input electrically isolated
  • Warning alarm relais and/or digital display (optional)
  • Connection for level control (pre- and main alarm)
  • Double-ball valves for highest accuracy


Minidos A
Smallest motor-drivendiaphragm dosing pump
  • Capacity range3.2 - 39L/hr
  • PVC, PVDF and stainless steel dosing head
  • Double-ball valves (standard) or spring-loaded single-ball valves
  • Separation chamber between dosing head and gearbox, with drainage pipe
  • Three-phase sectional motor (standard) or AC operation
    Compact form
  • Gearing components and bearing are lifetime lubricated
  • Stroke adjustment either manually or electrically (ATE)
  • Stroke counter with inductive detector for charge-processes (optional)
  • Pump is lubricated for long service life
  • Cost-efficient
  • Compact Design



Mididos E
Simple motor-drivendiaphragm dosing pump
  • Capacity range24 - 114L/hr
  • Easy to use
  • Gear parts and storage are lubricated for life
  • Hub length is manually adjustable from 0...100%
  • Suitable for toxic and aggressive substances
  • Materials: PVC, PP, PVDF, Stainless steel (dosing head and valves)
  • Seal FPM
  • Valves as double-ball valves
  • Coated in EPDM - PTFE lining
  • Gearbox with one-level worm-wheel gear-ratio

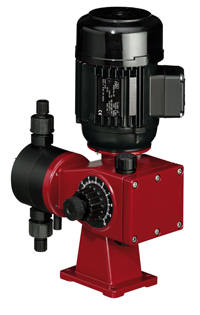

Memdos E-DX
Classicmotor-drivendiaphragm dosing pump
  • Capacity range4 - 393 L/hr
  • Suitable for accurate mixing tasks
  • Minor dependence of the back pressure
  • Linear development of the dosing quantity according to the stroke length
  • Tappet drive with manual and automatic capacity adjustment
  • Also suitable for frequency converter operation
  • Wide range of dosing head materials
  • Double-diaphragm system optional
  • Small stand, requires little space


Memdos MR
Powerfulmotor-drivendiaphragm dosing pump
  • Capacity range440 -990 L/hr
  • PP and stainless steel dosing heads
  • Double-ball valves (up to MR 290)
  • Spring-loaded flat-seat valves (starts with MR 400)
  • Spring-loaded single-ball valves (optional)
  • Separation chamber between dosing head and gearbox, with drainage pipe
  • Stroke adjustment either manually or electrically (ATE)
  • Dublex head pumps (optional)
  • Stroke counter with inductive detector for charge-processes (optional)
  • Frequency converter controlling (optional)


Memdos GMR
Big motor-drivendiaphragm dosing pump
  • Capacity range1600 -3200 L/hr
  • Double diaphragm dosing pump
  • Single or duplex dosing head pump
  • Medium side of EPDM separating diaphragm coated with PTFE
  • Single-ball valves
  • Drive: AC or DC motor
  • Stroke counter with inductive detector for charge-processes (optional)
  • Frequency converter controlling (optional)






FedosE-DX
ClassicPistondosing pump
  • Capacity range0.17 -31.5 L/hr
  • Max. pressure up to 100 bar
  • Suitable for accurate mixing tasks
  • Minor dependence of the back pressure
  • Linear development of the dosing quantity according to the stroke length
  • Tappet drive with easy-to-operate capacity adjustment
  • Also suitable for frequency converter operation
  • Flushing bush optional


RekosKR
BigPistondosing pump
  • Capacity range9 -725 L/hr
  • Plastic dosing heads for max. 10 bar
  • Stainless steel dosing heads for up to 200 bar
  • Simplex or duplex piston dosing pumps
  • Minor dependency on back pressure
  • Linear flow variation as a function of the stroke length
  • Double-ball, spring-loaded single-ball valves or disk valves, depending on the size
  • Dosing head with a flushing attachment
  • Piston packings in PTFE or Aramid-kevlar
  • Piston-diaphragm dosing heads available



KardosKN
PowerfulPistondosing pump
  • Capacity range9.9 -1550 L/hr
  • Plastic dosing heads for max. 10 bar
  • Stainless steel dosing heads for up to 400 bar
  • Each dosing head is 100% adjustable independently
  • Piston in ceramic, stainless steel or Hastelloy
  • Double-ball, single-ball or spring-loaded single-ball valves, depending on the size of the dosing head
  • Dosing head with a flushing attachment
  • Piston packings in PTFE or Aramid-kevlar
  • Dosing head heating
  • Piston-diaphragm dosing heads available


KardosN
High PressurePistondosing pump
  • Capacity range15 -4400 L/hr
  • Plastic dosing heads for max. 10 bar
  • Stainless steel dosing heads for up to 400 bar
  • Each dosing head is 100% adjustable independently
  • Piston in ceramic, stainless steel or Hastelloy
  • Double-ball, single-ball or spring-loaded single-ball valves, depending on the size of the dosing head
  • Dosing head with a flushing attachment
  • Piston packings in PTFE or Aramid-kevlar
  • Dosing head heating





Motor Pump MB
Conveying chemicals safely
  • Max. flow rate19 m3/hr, max.head 30 m
  • Temperature : PP max. 80 °C, PVDF max. 120 °C
  • Single-stage, normal-priming pumps with horizontal axis
  • Open impeller
  • Pump head made of high-quality thick-walled plastic material
  • Corrosion-resistant
  • Wetted-end parts made of highly resistant material
  • Special varnish, stainless steel pump shaft with shaft protection sleeve
  • Shaft seals single or double-acting
  • Vibrationless operation


Motor Pump BN
Conveying chemicals safely
  • Max. flow rate120 m3/hr, max.head 60 m
  • Speed 1450 and 2900 rpm
  • Temperature : PP max. 80 °C, PVDF max. 120 °C
  • Single-stage, normal-priming pumps with horizontal axis
  • Corrosion-resistant
  • Wetted-end parts made of highly resistant material
  • Special varnish, stainless steel pump shaft with shaft protection sleeve
  • Mechanical seal systems depending on medium
  • Space-saving installation
  • Vibrationless operation
  • Wide range of capacity


StandardPump N
Conveying chemicals safely
  • Max. flow rate300 m3/hr, max.head 100 m
  • Speed 1450 and 2900 rpm
  • Temperature : PP max. 80 °C, PVDF max. 120 °C
  • Single-stage, normal-priming centrifugal pump
  • Fast and easy removal of the bearing support
  • Corrosion-resistant
  • Wetted-end parts made of highly resistant material
  • Special varnish, stainless steel pump shaft with shaft protection sleeve
  • Mechanical seal systems depending on medium
  • Perfectly dimensioned shafts and bearings
  • Lifetime lubrication of bearings in bearing support
  • Vibrationless operation
  • Wide range of capacity





Peristaltic Pump 2.8 L/hr
Simple dosing pump
  • Capacity2.8 L/hr, manometric pressure 1.5 bar
  • Speed 30 rpm
  • ProtectionclassIP65
  • Rotor supported on two sides
  • Spring-loaded pressure rollers
  • Hose change without tools
  • Mounting on profile rails
  • Drain connection


EASYDOS Peristaltic V
Electronicdosing pump
  • Capacity7 - 400ml/hr and 120 - 9000 ml/hr,max. pressure 2 bar
  • 4 modes of operation
  • Self-priming
  • Genuine closed-loop speed control
  • Double ball bearing
  • Specially designed pump housing cover for easy and fast changing of the pump tube
  • Compact housing, easy to install
