K60002 Automatic Heated Oil Test Centrifuge
ASTM D91, D96, D893, D1796, D1966, D2273, D2709, D2711, D4007, D5546; IP 75, 145, 359; API 2542, 2548; ISO 3734; DIN 51793; NF M 07-020
  • Choice of long, short, pear, or finger rotor assembly to accommodate
    corresponding centrifuge tubes
  • Accommodates four (4) centrifuge tubes of 6 or 8" conical ASTM types, long, short, pear or finger tubes
  • Automatic control of acceleration ramp, centrifugation speed, and timing functions
  • 4-1/2" LCD Touch Screen Control Panel
  • Substantial Insulation for Reduced Heat Loss
  • Self balancing, Quiet Operation
  • Large, clear, top opening lid
  • Class 1, Division 2 explosion resistant rating


K70200 Oxidation Stability Bath, RBOT / TFOUT
ASTM D2112, D2272, D4742; IP 229
  • Constant temperature bath rotates oxidation pressure vessels at 100rpm at an angle of 30°
  • Meets ASTM requirements for heat transfer capability and temperature control precision
  • A convenient carriage arrangement allows the oxidation vessels to be inserted quickly and securely in the drive system
  • The bath interior is constructed of welded stainless steel and is fully insulated
  • A hinged section of the bath cover provides easy access to the vessel carriages


K70000 Oxidation Pressure Vessel, RBOT / TFOUT

ASTM D2112, D2272, D4742; IP 229

  • Consists of pressure vessel body, cap and stem with inlet needle valve in accordance with ASTM specifications
  • Vessel holds one borosilicate glass sample container between two PTFE discs
  • Vessel connects to pressure recorder or rotary transducer and rotates on magnetic carriage in RBOT bath
  • Withstands working pressure of 500psi (3450kPa) per ASTM specifications
  • Stainless steel construction ensures proper rate of heat transfer.


K70502 Oxidata™ Data AcquisitionSoftware Package

  • Electronic pressure measurement systems exclusively designed for RPVOT (formerly RBOT), TFOUT and other ASTM oxidation test methods
  • Automatic end-point detection for RPVOT (formerly RBOT), TFOUT, and D525 test methods
  • Powerful software system for PC platforms operating in Windows ® 98 SE, 2000, NT, ME, and XP environments
  • Monitors up to twelve pressure channels and four temperature channels
  • Displays average bath temperature and pressure readings in real-time



K88500 Air Release Value Apparatus & Data Acquisition Software
ASTM D3427; IP 313; DIN 51381; NF E 48-614
  • Complete instrument and data acquisition system exclusively designed for conducting ASTM D3427, IP 313 and related test methods
  • Powerful software system for Windows®-based PC platforms automates sample density measurements as well as the calculation of the air release value, the first order rate of air release, and the volume percent air versus time
  • High accuracy temperature control with digital setpoint and display
  • Digital control panel leads user from start to finish of test operation
  • Automatic calculation of final sample density for determination of air release value
  • Redundant overtemperature protection circuitry assures safe operation



K21410 SV3000/SV4000 Saybolt Viscosity Baths
ASTM D88, D244, E102; AASHTO T72; FTM 791-304
  • Microprocessor control of temperature between ambient and 240°C (464°F)
  • Four tube capacity
  • Dual digital displays show setpoint and actual temperature
  • Selectable temperature scale - Fahrenheit or Celsius
  • Automatic timing option for simplified, accurate measurement of efflux times
  • Conforms to ASTM D88, D244, E102, and related specifications

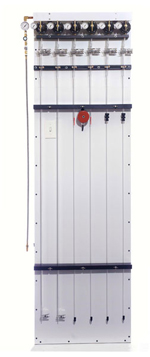

K41506 Fluorescent Indicator Absorption Apparatus
ASTM D1319
  • Quick connections for columns for faster set-up and analysis
  • Integrated vibration system for dry silica gel packing
  • Handheld UV Lamp
  • Two, four, or six column models available


K26150 Pressure Hydrometer Cylinder
ASTM D1657; GPA 2140; IP 235; ISO 3993; NF M 41-008
  • Built-in safety relief valve 200psi (1.4MPa)


K26150 Pressure Hydrometer Cylinder
ASTM D5, D217, D937, D1321, D1403, D2884, D4950; IP 49, 50, 179, 310; ISO 2137; DIN 51804, 51580, 51579; FTM 791-311, 791-312, 791-313; AOCS Cc 16-60; AACC 58-14; NF T 60-119; 60-123; 60-132; 66-004
  • Tests the consistency of lubricating greases, petroleum waxes, bitumens, pastes, creams and other solid to semi-solid products
  • Automatically timed operator programmable penetration measurements
  • Motorized placement of penetrator on sample surface
  • Large LCD to display all functions
  •  RS232 port for data transfer
  • Full measurement range of 0-620 in 1/10mm scale or 1/100mm scale
  • Rechargeable battery or AC operation
  • Large, removable base accommodates grease worker cups and other ASTM and non-standard sample containers
  • Complete selection of penetrometer cones, needles and accessories for petroleum products testing and for a wide range of other applications
  • Conforms to all ASTM, IP, ISO 9001 and related specifications for penetrometers
