AUW-D Series Dual-range Semi-micro Balances
5 Decimal with metal body (0.00001 g)

AUW-D dual-range semi-micro balances are the world's first five-decimal balances with the advantages of UniBloc one-piece force cell technology.

Choice of fully-automatic calibrations: PSC and Clock -CAL
Operator can choose from two types of fully-automatic span calibration methods. "PSC" is initiated based on temperature change detection, and "Clock-CAL" operates at user pre-set times (up to three times a day).

GLP/GMP/ISO calibration report
Calibration report can be automatically printed with the optional electronic printer. Date, time, serial number and ID are also output to meet GLP/GMP/ISO requirements.

WindowsDirect function
The balance communicates directly to a PC with Windows® applications. No additional software is needed to interface with spreadsheets, databases, word processing, and laboratory software. WindowsDirect works with Windows® 95, 98, 2000, NT4.0, ME and XP. PC must be IBM PC/AT compatible.

AUW220D : 220g (0.1mg) / 82g (0.01mg)
AUW120D : 120g (0.1mg) / 42g (0.01mg)


AU Series Analytical Balances
4 Decimal with metal body (0.0001 g)

AU models are the newest single-range analytical balances engineered with the UniBloc technology. This provides fast response and superb stability in a 0.1mg analytical balance. Various application functions, two modes of fully automatic calibration and back lit display support any imaginable requirements.

Choice of fully-automatic calibrations: PSC and Clock -CAL
Operator can choose from two types of fully-automatic span calibration methods. "PSC" is initiated based on temperature change detection, and "Clock-CAL" operates at user pre-set times (up to three times a day).

GLP/GMP/ISO calibration report (AUW and AUX only)
Calibration report can be automatically printed with the optional electronic printer. Date, time, serial number and ID are also output to meet GLP/GMP/ISO requirements.

WindowsDirect function
The balance communicates directly to a PC with Windows® applications. No additional software is needed to interface with spreadsheets, databases, word processing, and laboratory software. WindowsDirect works with Windows® 95, 98, 2000, NT4.0, ME and XP. PC must be IBM PC/AT compatible.

AUW : 320g/220g / 120g
AUX : 320g/ 220g / 120g
AUY : 220g / 120 g

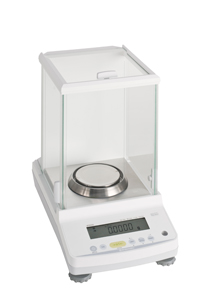

ATX / ATY Series Analytical Balances
4 Decimal withplastic body (0.0001 g)

ATX/ATY series realized superior performance and budget price with Shimadzu weighing sensor UniBloc. This model achieve usability and high accuracy as analytical balance.

Touch-Key calibration (ATX series)
Automated calibration can be started by pressing keys. Also, your external calibration weights can be used for span calibration (all models)

Easy Setting best fit to weighting application
Quickly adjust the desired ration of stability and response for every application, even during measurement, with one-touch operation.

WindowsDirect communication function
Send balance data to Excel or other Windows applications without any data communication software installation required. By combining standard Auto print functions with typical spreadsheet functios, even difficult applications can be easily automated.

ATX : 220g / 120g / 82g
ATY : 220g / 120g / 62g

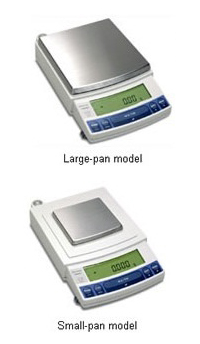

UW / UXSeriesTop-Loading Balances
1-3Decimal withmetal body (0.1, 0.01, 0.001 g)

The new line of Shimadzu top-loading balances are engineered with the innovative UniBloc mechanism which brings superior impact resistance unrivaled quick response, excellent stability and durability at the same time. Powerful features support any imaginable weighing application. UW Series comes with motor-diven built-in calibration weight and fully-automatic calibration functions.

Choice of fully-automatic calibrations: PSC and Clock -CAL
Operator can choose from two types of fully-automatic span calibration methods. "PSC" is initiated based on temperature change detection, and "Clock-CAL" operates at user pre-set times (up to three times a day).

GLP/GMP/ISO calibration report
Calibration report can be automatically printed with the optional electronic printer. Date, time, serial number and ID are also output to meet GLP/GMP/ISO requirements.

WindowsDirect function
The balance communicates directly to a PC with Windows® applications. No additional software is needed to interface with spreadsheets, databases, word processing, and laboratory software. WindowsDirect works with Windows® 95, 98, 2000, NT4.0, ME and XP. PC must be IBM PC/AT compatible.

UW : 8200g/ 6200g / 4200g / 2200g / 1020g / 820g / 620g / 420g / 220g
UX : 8200g / 6200g / 4200g / 3200g / 2200g / 1020g / 820g / 620g / 420g / 320g / 220g



TW / TX /TXB Series Top-Loading Balances
0-3Decimal with plastic body (1, 0.1, 0.01, 0.001 g)

Easy to operate key layout
Menu navigation keys are separated from weighing operation keys and arranged in a familiar 5-way navigation circle. Up, Down, Right, Left and Enter are the simple operational steps.

Best fit to weighing application
Quickly adjust the desired ratio of stability and response for every application, even during measurement, with one touch operation.

WindowsDirect Communication Function Only a cable is needed to send weighing data to a computer
Send balance data to Excel or other Windows applications without any data communication software installation required. All you have to add is one RS-232C cable. By combining standard AutoPrint functions with typical spreadsheet functions, even difficult applications can be easily automated.

Can be used anywhere with battery power (TXB only)
Power the TXB series balances by AC adapter or batteries.

RS232C interface
All models include standard RS232C interface for easy integration with other devices and computers

TW : 420g / 320g / 220g
TX : 4200g / 3200g / 2200g / 420g / 320g / 220g
TXB : 6200g / 4200g / 2200g / 620g / 420g / 220g





MOC63uMoistureAnalyzer
Excellent performance for a wide variety of applications in multiple industries

In many fields, a moisture analyzer is a necessary tool for quality control requirements. With the MOC63u, you can easily obtain accurate data. Simply place material on the pan and shut the cover. The MOC63u will start to measure. The MOC63u adapts to various materials and increases your work efficiency.

Features :

Halogen heater
Long-life and high power halogen heater provides quick and accurate measurement. The temperature can be changed from 50 degrees to 200 degree Celsius.
You can check sample status from window while measurement.

Large pan size
MOC63u has large pan. (95mm diameter)
It can provide quick and accurate measurement to spread sample in thin layer on the pan.

Built-in USB port
The measure results can be transferred by USB cable.

WindowsDirect
Send balance data to Excel or other Windows applications without installing additional data communication software. By combining standard Auto print functions with typical spreadsheet functions, even difficult applications can be easily automated.

You can create graphs easily with WindowsDirect and Excel.


Easy operation using a simple keypad
Features easy-to-operate software and keypad layout. In addition, an automatic starting mode saves measurement time, increasing your work efficiency. Operation simply requires putting material on the pan and shutting the cover. Internal memory can save 10 measurement conditions and 100 results. Various measurement modes provide extra support.
