Wet Film Thickness Gauges with notches

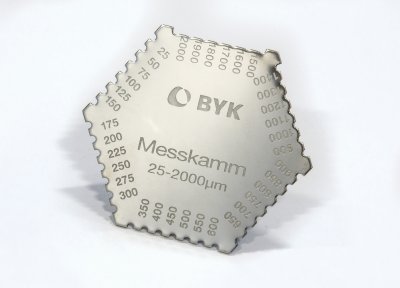

Wet Film Thickness Gauge - hexagon in microns

• Made of stainless steel
• Measuring range: 25 - 2000 µm
• Outer diameter: 90 mm
• Comes with a protective pouch for convenient storage

Features

Wet film comb gages also know as notch gages are formed on the edge of a piece of material so that each notch has a different clearance from the reference shoulders to its neighbors

BYK-Gardner offers comb gages in many different materials, such as stainless steel, aluminum or plastic in a variety of shapes: square, rectangle or hexagon. Depending on your application single or dual scale combs in microns / mils are available.

• Wet film measurement provides first opportunity to do a quick check of the coating and its application process
• Simple low-cost device which is useful whan approximate values are satisfactory
• Very useful for coating systems where the dry film thickness can only be measured destructively
