Duplex Pump
SKU : F-0006
Precision Ratio Mixing
Product description
Specifications

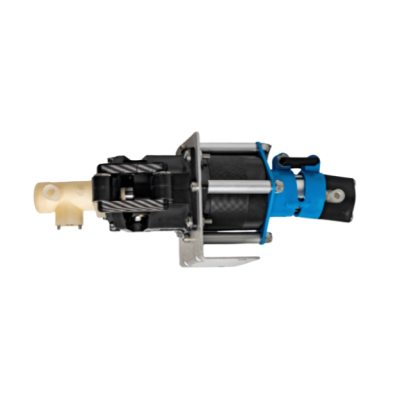

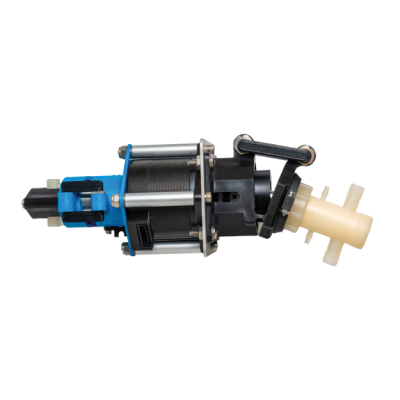

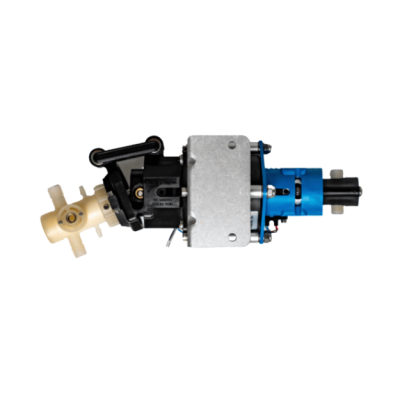

The Duplex Pump consists of two valveless pump heads directly coupled to a single variable stepper motor drive. The displacement of each pump head is independently adjustable, and a variety of pump head sizes can be used in combinations to achieve dispensing ratios from 1:1 up to 100:1 from microliters to liters.
| Dispense Volume Range | Flow Rate Range | Motor Speed Range |
| 0.005-2.56 mL/rev1, 2 | 0.025-2560 mL/min1, 2 | 1000 rpm (dependent on fluidic setup) |
Click here to download the product sheet
More details can be found here: Duplex Pump
1 The dispense volume and flow rate vary based on the specific pump head and motor setup.
2 Pressure ratings dependent on selected pump heads.
